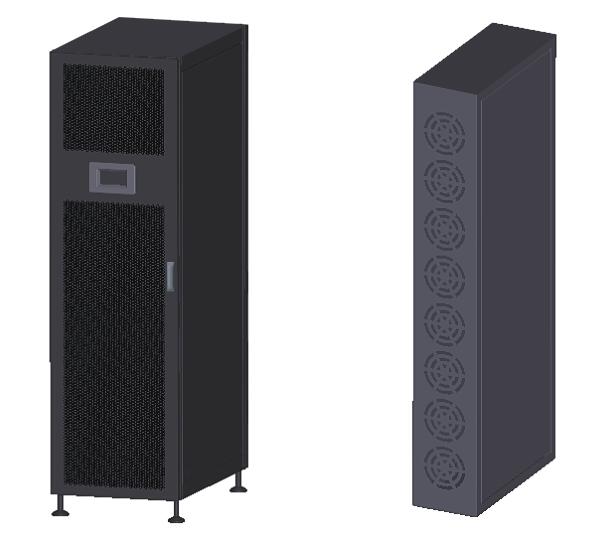

Array air conditioning

Data center cooling system is mainly divided into room level refrigeration and array-level refrigeration, array air conditioning refrigeration solutions aimed at high density, micro module data center,it is close to the heat source, could realize the proximal refrigeration, thereby reducing energy consumption and the whole PUE value.

  • Product Introduction
  • Product Features
  • Technical Parameters

Product Introduction

Data center cooling system is mainly divided into room level refrigeration and array-level refrigeration, array air conditioning refrigeration solutions aimed at high density, micro module data center,it is close to the heat source, could realize the proximal refrigeration, thereby reducing energy consumption and the whole PUE value.

Product Features

High efficiency and energy saving, proximal air circulation., refrigeration loss minimization.
High reliability, high flexibility, low cost.
Flexible cooling capacity design : automatically cooling capacity adjustment according to the temperature change of equipment in machine room.
Equipped with double EC fan, redundant design, automatically air volume adjustment according to the room temperature.

Product Parameters

Product type Refrigeration mode Air supply mode Refrigerating capacity Air supply ability Land area
300 width Air-conditioner Air cooling
air/cold water cooling
Air cooling
air/cold water cooling
12KW 2500m3/h 0.36m2
25KW 5000m3/h
60KW 11000m3/h
600 width Air-conditioner Front air out
Back air return
35KW 8200m3/h 0.72m2
45KW 7000m3/h
65KW 11000m3/h
